ORBIT HOFR Welding Cable, Conform the construction and performance as per IS 9857. These cables are designed to use in machine welding & hand welding to work at dry and wet locations as well as outdoor use.
Fixed: -20˚C to 90°C

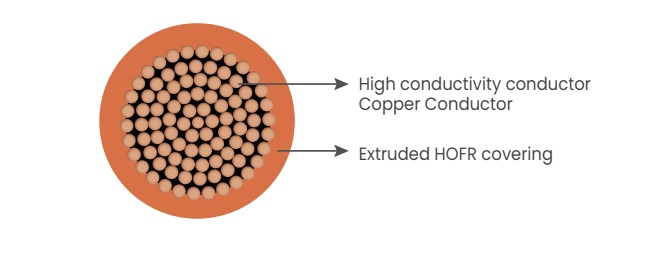

Annealed plain bunched electrolytic grade.
copper conductor to IS 8130, class 6.
Covered by SE3 (HOFR) to IS 6380.
Black
Orange (without ISI mark)
IS 8130:2013
IS 6380:1984*
IS 9857:1990*
1000 V AC
Conductor resistance test : IS 8130
Covering resistance test : IS 6380:1984*
Flammability : IEC 60332-1-2
Fixed installation 5 x Overall Diameter
✴Light weight
✴Safe and secure
✴Reliable and efficient
✴Choice of Cables dimensions
✴Easy to implement in the circuits
✴Designed for stripping and overmolding.
✴Chloroprene Cables are Easy to carry
✴These Cables can carry signals up to 40 volts
✴Widely used to distribute low voltage data signal
✴Cables may be used in damp, dry, or wet Conditions
✴Jacket material options to provide high flexibility and excellent mechanical protection.
✴Cables are suitable for electrical installation industrial control circuits for sending electrical signals
