Solar energy is the most abundant source of energy on our planet. Solar energy is converted into electrical energy by means of arrays of Photovoltaic modules. Specially designed Photovoltaic cables are used in these modules. Solar Cables are designed to meet the growing needs of th solar industry. Our solar cables is just the beginning of our plans to develop and launch green technology in wires & cables. Solar Cables are flexible and are resistant to abrasion & moisture. Regardless of your panel-to-grid needs, we have the cables to meet your requirements. Solar energy is the most abundant source of energy on our planet.
These cables are designed for connecting photovoltaic power supply systems. These cables can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions

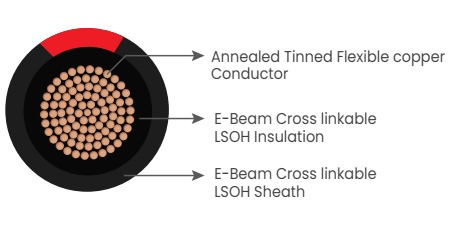

✴Conductor : Electrolytic Multi Stranded tinned copper conductor flexible
(As per IEC 60228) Class 5.
✴Insulation : Crosslinked Halogen Free & Flame Retardant Insulation
✴Sheath : Crosslinked Halogen Free & Flame Retardant Sheath
(in Black/Blue/Red Colour)
✴Voltage test: 6500V as per EN 50395.
✴Max permissible operating voltage: DC 1.5Kv (conductor-conductor, non earthed system).
✴Nominal voltage: AC - 0.6/1 Kv, DC - 900/1.5 Kv.
✴Ambient Temperature: -40°C to + 90°C.
✴Max conductor temperature: 40°C to 120°C.
✴5*0D (fixed installation)
✴15 *OD (occasional moved)
✴Fire performance: IEC 60332-1-2
✴Smoke emission: IEC 61034/ EN 50268-2
✴Halogen free: EN 50267-2-1/-2, IEC 60754-2
✴Toxicity: EN 50305, ITC - index <3
✴Ozone Resistant: EN50396
✴Weathering UV: HD 605/A1 or DIN 53367
✴Approvals: EN 50618
✴Cross linked halogen free low smoke flame retardant Insulation
✴UV, ozone, temperature & hydrolysis resistant
✴Flame retardant, low smoke
✴Excellent encapsulation
✴Very long /service life >25 years

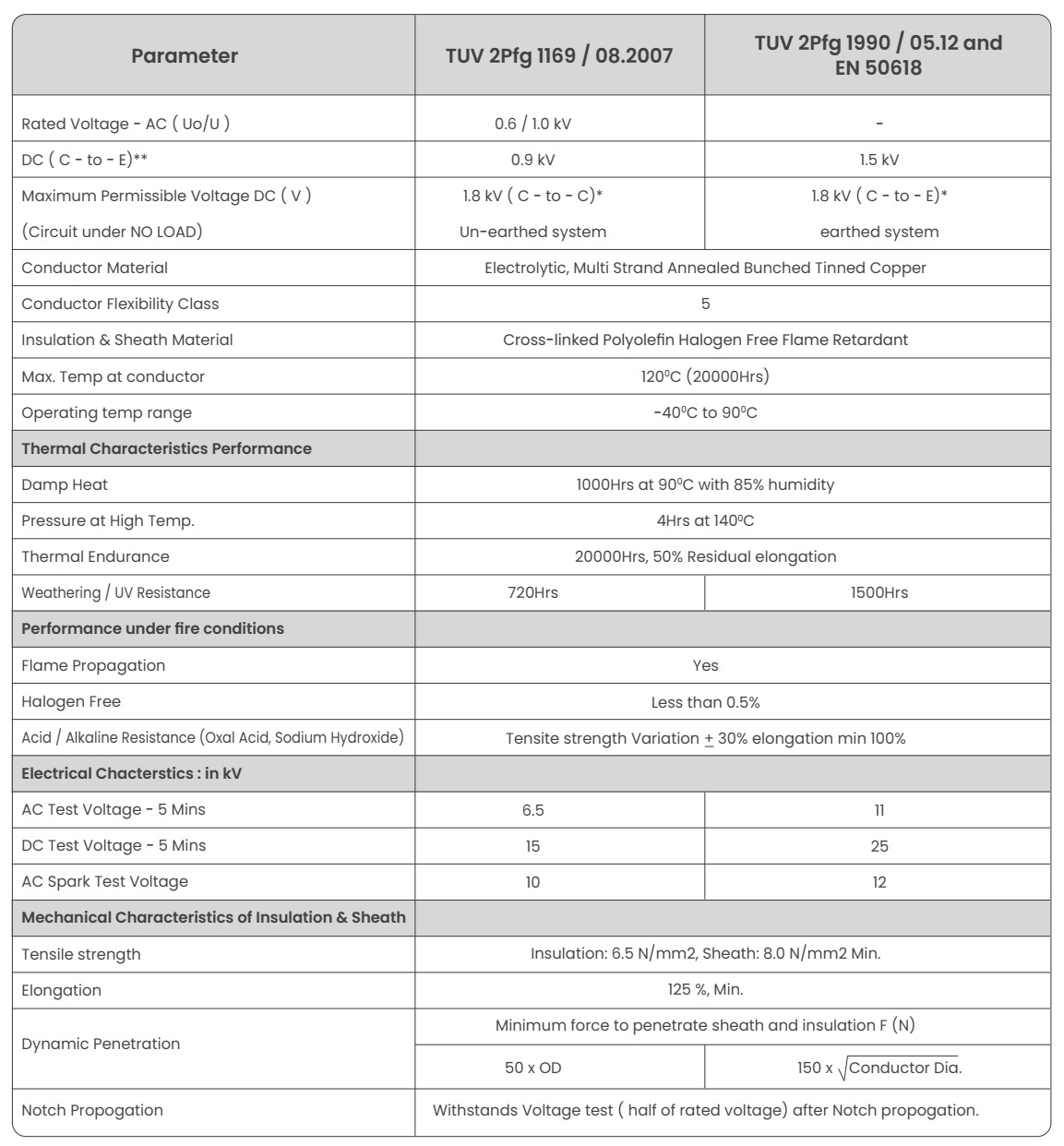

( AS PER TUV SPECIFICATION - EN 50618 : 2014 )
( AS PER TUV SPECIFICATION - EN 50618 : 2014 )
