ORBIT CAT 6E UTP SOLID COPPER CABLE 23 AWG WITH FR-PVC JACKET

This Category 6+, four pair cable is a high-speed, high performance, 100 ohm impedance cable capable of carrying high bit-rate signaling for extended distances in horizontal cabling. Signal amplifiers are not required for a length of 328 feet (100 M). Applications can include Voice, ISDN, ATM 155 Mbps, ATM 622 Mbps 100 Mbps TPDDI, Fast and Giga Ethernet, and IEEE 802.3/5/12, 100 BASE VG (100 BASE NE), 100 BASE-T, 100 Mbps TP-PMD, 1000 BASE-T, 10Gb and any other future applications designed for Category 6 Cables.

APPLICATION

LAN cables are high performance cables used increasingly for modern computer network systems. These cables form the back bone of modern data transmission in industries, residential and commercial infrastructure.

KEY FEATURES :

✴For Data Center Applications.

✴High bandwidth @ 500 MHz.

✴High bandwidth @ 500 MHz.

✴FR-PVC jacket.

✴High speed transmission of Voice, Video and Data on LAN.

✴Complies to ANSI/TIA 568-C.2 Cat 6A, ISO/IEC 11801 EA.

MECHANICAL PROPERTIES :

✴Installation Temperature: (0°C to +50°C)

✴Pulling Force: 25 lbs

✴Cable Diameter: 6.6 ± 1.0 mm

✴Rip cord: Nylon Rip cord.

✴Jacket Colour: Light Grey (Customised colours request).

✴Central Separator: PE Cross Separator.

✴Solid Pairs: 4 Pairs Twisted together.

✴Outer Jacket: FR-PVC sheath.

✴Bending Radius: 4 X OD at 20°C.

✴Operating Temperature: (-20°C to +60°C).

✴Conductor: 23 AWG Solid Bare Copper.

✴Insulation: High Density Polyethylene.

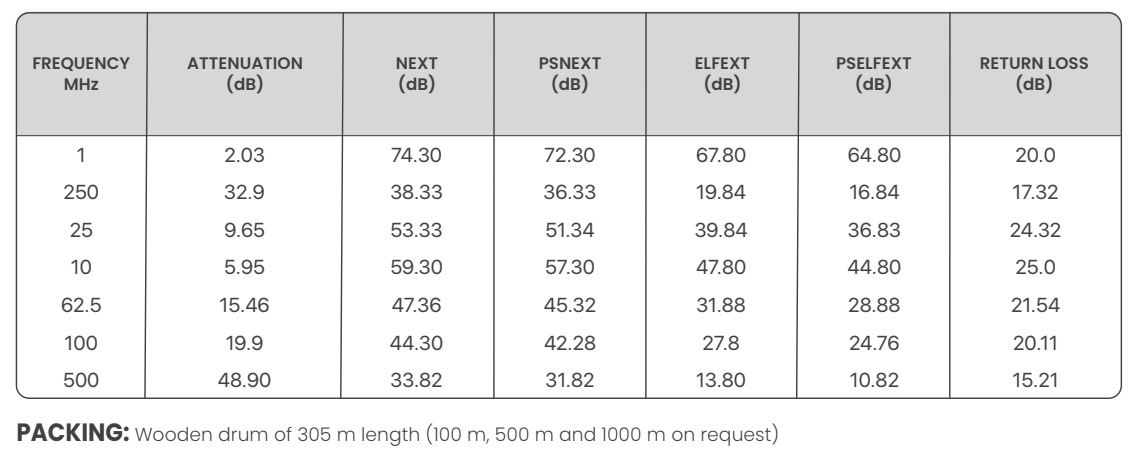

ELECTRICAL PROPERTIES :

✴Mutual Capacitance: 5.6 nF for 100 Mtr

✴Resistance Unbalance (%): max 5

✴Conductor Resistance: 9.2 Ω/100 Mtr max.

✴Capacitance Unbalance: 330 pF for 100 Mtr.

✴NVP: 69%.

✴Insulation Resistance: 100 M Ω.

✴Delay Skew: 48 ns/100 Mtr.

✴Dielectric strength: 1000 V RMS

✴Operating Voltage: 72 V.

✴Propagation Delay: < 542 ns/100 Mtr.

✴Current Rating: max 1.5 A.

COLOR CODE

Pair Number : Colour

✴1 - 2 : White-Orange Strip and Orange

✴3 - 6 : White-Green Strip and Green

✴4 - 5 : White-Blue Strip and Blue

✴7 - 8 : White-Brown Strip and Brown
