Orbit Co-axial cable for Cable TV network is manufactured at Ahmedabad. The provide an ideal combination of electrical cables the preferred choice for a variety of application in CATV network.
The centre conductor is made of solid electrical grade 99.97% pure copper to ensure better signal transmission. Theconductor is insulated with nitrogen gas, which is superior and environment friendly as compared to chemical foam. Thedouble screen of special composite type bonded aluminium foil and special grade aluminium alloy braiding of 60% coverage ensures low loss in signal quality, additional mechanical strength, and resistance to oxide formation in tropical whether conditions. The specially inhouse formulated PVC compound used in jacket is UV and abrasion resistant.
Orbit Co-axial cables are technologically superior and provide a smooth high frequency signal transmission to CATV network. Orbit Coaxial cables are suitable to use in external as well as in internal installation for low power video signal and broad band signals.
Max : 70˚ C
✴RG-59 F/RG-6 F/RG-11 F: Solid bare copper,
✴RG-6 CCS/RG-11 CCS: solid copper clad steel.
✴Insulated with foam HDPE (high density polyethylene).
✴Inner shielded by Bonded Aluminium foil.
✴Braided with aluminium alloy wire.
✴Flooded with jelly
✴Sheathed with Flame retardant PVC in Black colour.

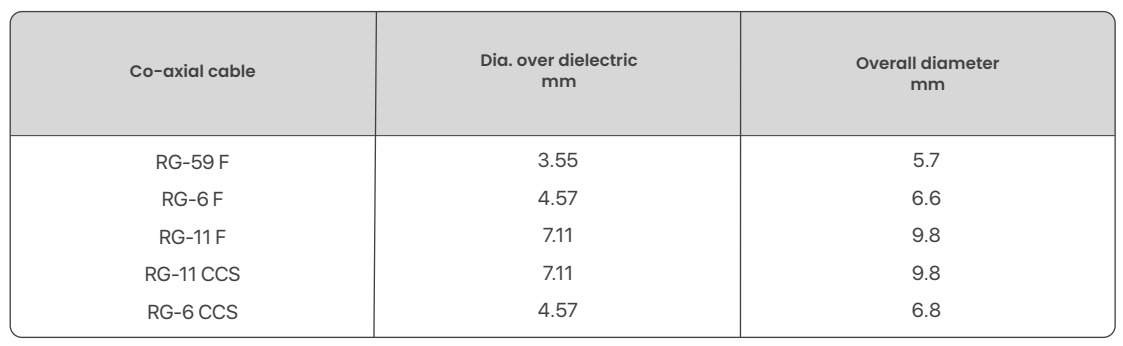

20 x Overall diameter
ANSI/SCTE 74 2011
All above products are available with armouring on demand
