ORBIT, CCTV (CLOSED CIRCUIT TELEVISION) CABLE

ORBIT offers CCTV cable which are specially designed to transmit complete video frequency with minimum distortion or attenuation.

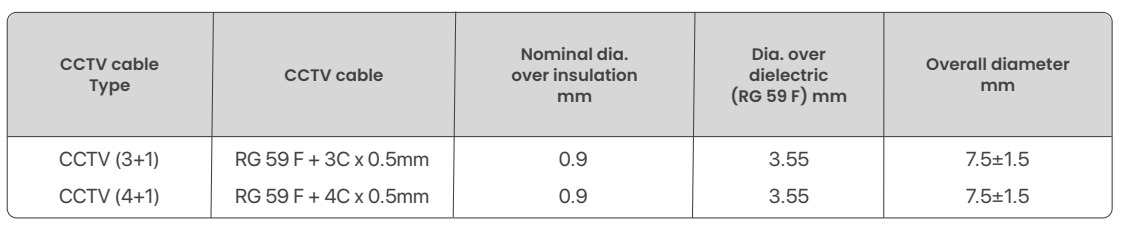

This cable is offered in two types namely 3+1 CCTV cable & 4+1 CCTV cable. Co-axial cable forms the carrier for video signal and other 4 core or 3 core forms the carrier for power. Technologically superior construction of Co-axial cable in CCTV cable ensures distortion free video signal.

ORBIT CCTV cables are truly tested for all parameters by computerised analyser. CCTV cables with armouring can also be supplied on demand.

APPLICATION

Orbit CCTV cable is designed to use in close circuit camera system for safety and security management in industries, Malls, hospitals, shops, Roads and offices

OPERATION TEMPERATURE

Max : 70˚ C

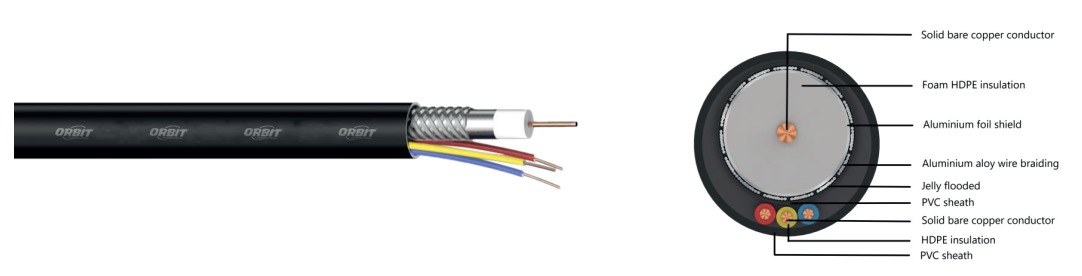

CONSTRUCTION

✴Solid bare copper conductor

✴Insulated with HDPE (high densitypolyethylene)

✴Co-axial cable: RG 59 F

✴Solid bare copper

✴Insulated with foam HDPE (high density polyethylene)

✴Inner shielded by Aluminium foil

✴Braided by aluminium alloy wire braiding with tensile strength flooded with jelly

✴Sheathed with PVC type ST1

BENDING RADIUS

60 mm

NOTE

CCTV armoured cable is available on demand

FEATURES & ADVANTAGES

✴Minimum loss in signal quality

✴Higher bandwidth

✴Low attenuation value

✴Minimum structural return loss (SRL)

✴Moisture proof

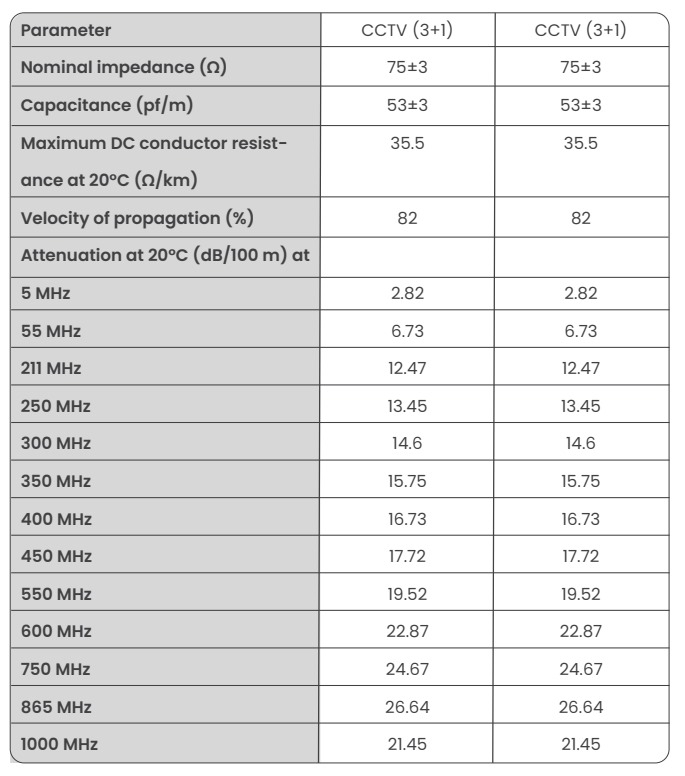

ELECTRICAL CHARACTERISTICS
