Are widely used in areas of Enhanced performance Cable for Transmission of High speed Data, Digital and Analog Voice & Video (RGB) Signals on LANs. Supports Gigabit Ethernet (1000 baseT) standard. Operates at bandwidth upto 250MHz.
LAN cables are high performance cables used increasingly for modern computer network systems. These cables form the back bone of modern data transmission in industries, residential and commercial infrastructure.
✴High speed transmission of Voice, Video and Data on LAN.

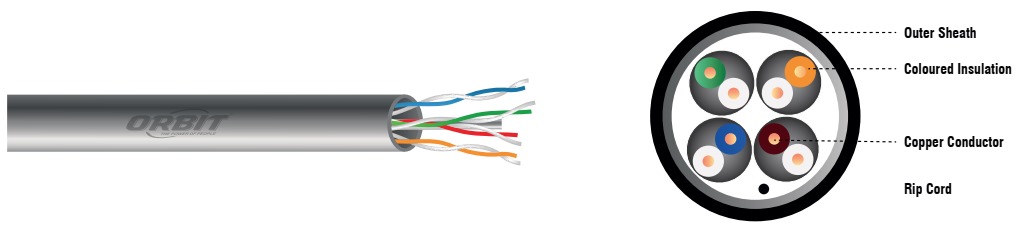

✴Rugged Double sheath construction.
✴4 Pair 23 AWG.
✴Complies to ANSI/TIA-568-C.2, ISO/IEC 11801.
✴High bandwidth @ 250 MHz.
✴Suitable for Outdoor above ground application.
✴For Data Center Applications.
✴Solid Pairs: 4 Pairs Twisted together
✴Inner sheet: PVC
✴Bending Radius: 8 X OD at 20°C
✴Cable Diameter: 7.5 ± 0.5 mm
✴Operating Temperature: (-20°C to +60°C).
✴Installation Temperature: (0°C to +50°C).
✴Rip cord: Nylon Rip cord.
✴Pulling Force: 25 lbs.
✴Outer Jacket: Black HDPE/LSZH/Anti Rodent.
✴Central Separator: PE Cross Separator.
✴Conductor: 23 AWG Solid Bare Copper.
✴Insulation: High Density Polyethylene.
✴Operating Voltage: 72 V
✴Conductor Resistance: 9.2 Ω/100 Mtr max.
✴Mutual Capacitance: 5.6 nF for 100 Mtr.
✴Resistance Unbalance (%): max 5.
✴Capacitance Unbalance: 330 pF for 100 Mtr.
✴Delay Skew: 48 ns/100 Mtr.
✴Propagation Delay: < 538 ns /100 Mtr.
✴NVP: 69%
✴Current Rating: max 1.5 A.
✴Dielectric Strength: 1000 V RMS.
✴Insulation Resistance: 100 M Ω.
Pair Number : Colour
✴1 - 2 : White-Orange Strip and Orange
✴3 - 6 : White-Green Strip and Green
✴4 - 5 : White-Blue Strip and Blue
✴7 - 8 : White-Brown Strip and Brown
